Wear-resistant alloy cutters

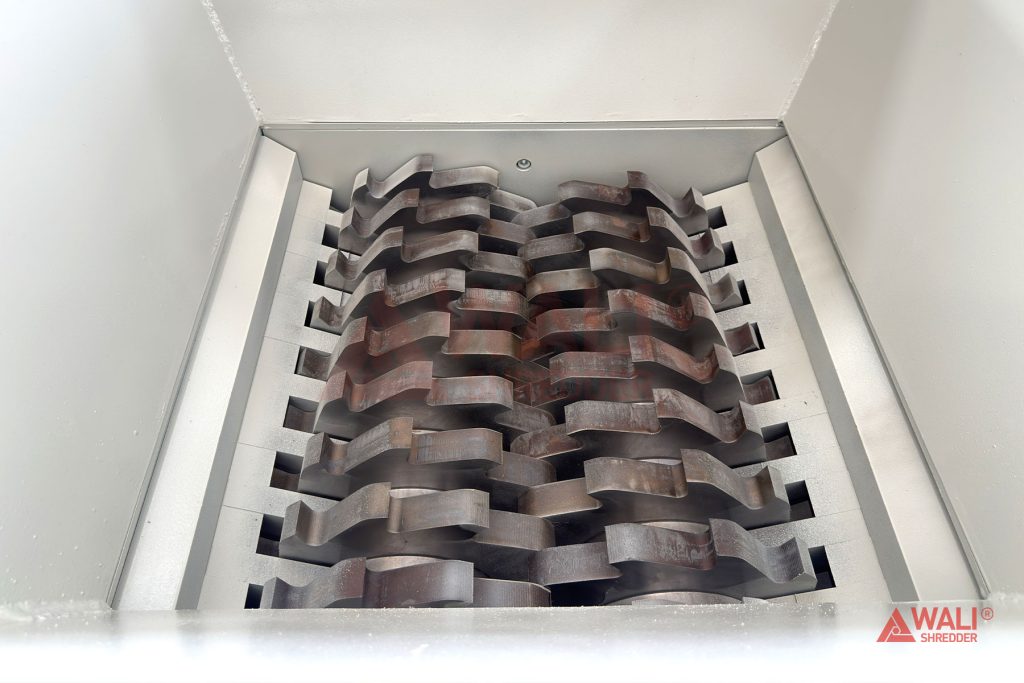

Replaceable cutters manufactured from high-hardness wear-resistant alloy steel support longer service life and practical replacement or repair.
Discuss this configuration →Twin-shaft
Twin-shaft Shredders
Compact low-speed, high-torque shredding for mixed waste and controlled primary reduction.
WLS Series
Best suited forWood / Paper / Plastic Parts
Total installed power5.5–30 kW total
Listed model throughput0.3–3 t/h
Sales engineerDiscuss your application ↗Response within one business day01 · Product introduction
Built around the material and the required result.
Application-specific configurationServiceable cutting systemApplication-specific cutter geometryContinuous-duty construction
02 · Equipment features
Engineering details that affect daily operation.
Anti-wrapping fixed knives
The fixed-knife geometry helps prevent flexible material from winding around the shafts, reducing blockages and supporting continuous operation.
Discuss this configuration →
Four-stage bearing sealing
A multi-stage sealing arrangement protects the bearing area against dust, moisture and corrosive contamination in demanding applications.
Discuss this configuration →
PLC monitoring and control
Trusted electrical components and PLC control provide operating status, overload alarms and practical diagnostic information for daily operation.
Discuss this configuration →Automatic reverse protection
When excessive load or a material jam is detected, the control system automatically reverses the shafts to release the obstruction and protect the drivetrain.
Discuss this configuration →
Service-friendly construction
The compact drive arrangement, replaceable cutters and accessible service points simplify routine inspection and help control maintenance cost.
Discuss this configuration →03 · Application range
Match the machine to the duty.
- Kitchen waste: fruit and vegetable residues, food-market waste and selected organic waste.
- Domestic waste: mixed household material without stones, ceramics or other unsuitable hard contaminants.
- Plastic waste: bottles, jugs, buckets, baskets and rigid plastic products.
- Electronic waste: hard drives, printed circuit boards (PCBs), keyboards, phones and compact electronic products.
- Light metal waste: swarf, cans, paint containers and thin sheet-metal products.
- Medical waste: selected syringes, pharmaceutical packaging, masks, latex and small devices.
- Paper products: cartons, cardboard, newspapers, books, documents and packaging paper.
- Industrial waste: garments, leather, textile offcuts, carpets and mixed production waste.
The WLS is a compact low-speed, high-torque double-shaft shredder for difficult or mixed feedstock. Cutter thickness, hook geometry, shaft speed and drive power are selected around the material and required capacity. Because the machine discharges without a sizing screen, the final fraction is influenced by cutter configuration and repeated material engagement.
Direct engineering contact
Need a quotation or configuration advice?
Send your material, hourly capacity and target output. A WALI engineer will help define a practical starting point.
Talk to an engineer →
APPLICATION ENGINEERING · WALIMachine in operation
See the machine working with real material.
Watch the feeding, stable processing and resulting output under real operating conditions.
04 · Compare models
WLS Series model range.
Use this table for preliminary comparison. Throughput depends on the feedstock, cutter geometry, feeding consistency and operating conditions. These unscreened shredders do not guarantee a uniform final particle size. Power summaries add the listed installed motors; capacity ranges span the listed model values and remain material-dependent.
| Specifications | WLS-350 | WLS-505 | WLS-608 | WLS-710 |
|---|---|---|---|---|
| Drive power | 5.5/7.5 kW | 15/18.5 kW | 22 kW | 30 kW |
| Cutting chamber | 450*350 mm | 550*500 mm | 640*800 mm | 690*1000 mm |
| Typical throughput | 300-800 kg/h | 500-1500 kg/h | 1000-2500 kg/h | 1500-3000 kg/h |
| Typical output | 30-90 mm | 30-90 mm | 30-90 mm | 30-90 mm |
Technical documents
View product information.
Open a brochure online before deciding whether to download it. Contact our team for a project-specific configuration.
PDFProduct brochure
Successful applications
View all projects ↗Projects using WALI equipment.
CompletedJiangsu China
Bulky Waste Recycling Solution- Jiangsu-Suqian
One-Stop Crushing & Separation Solution
View project ↗
CompletedNanjing China
Bulky Waste Recycling Solution-Nanjing-Qilin
One-Stop Crushing & Separation Solution
View project ↗
CompletedNanjing China
Bulky Waste Recycling Solution-Nanjing-Gaochun
One-Stop Crushing & Separation Solution
View project ↗Real factory delivery
Built, checked and prepared for delivery.
Selected packing and shipment records associated with this equipment family.
View factory delivery records ↗Export container loading
WLS
The images document the loading process at our facility, featuring reinforced waterproof film packaging to guarantee safe, damage-free transit over long distances. The equipment has now arrived at its destination safely, and we will continue to provide ongoing installation guidance and technical support.
Export container loading
WLS
This compact double-shaft shredder is ready for shipment to our client. The machine is securely packed in wooden cases to withstand long ocean transit. The photo shows the final loading process at our facility.
Frequently asked questions
Before you choose a machine.
Clear answers about selection, manufacturing, delivery and support.
Are you a factory or a trading company?
WALI is an industrial recycling equipment manufacturer with its own production, assembly and testing capabilities.
How do you select the right equipment?
Our engineers review the material, required capacity, target output and complete process before recommending a configuration.
Can this equipment be customized?
Yes. The cutting system, drive, controls, dimensions and line integration can be configured according to the project.
How long is delivery?
Delivery depends on the equipment type, customization and the confirmed production schedule. A lead time is provided with the final technical proposal.
What after-sales support is available?
Support can include documentation, remote guidance, spare parts, training and on-site service where agreed in the project scope.
