Alloy hammers and knives
The rotor can be equipped with swinging hammers or knives manufactured from high-alloy materials for impact strength, wear resistance and long service life.
Discuss this configuration →Hammer mill
Hammer Mills
High-speed impact processing for metal recovery, e-waste liberation and fine size reduction.
WLHM Series
Best suited forMetals / e-waste / separation
Total installed power37–132 kW total
Listed model throughput0.3–2 t/h
Sales engineerDiscuss your application ↗Response within one business day01 · Product introduction
Built around the material and the required result.
Application-specific configurationServiceable cutting systemControlled output sizingContinuous-duty construction
Engineered around the material
High-impact size reduction for metal recovery, material liberation and downstream separation. Tell us the feedstock, hourly capacity and target output. WALI engineers will configure the cutting system, drivetrain and downstream process for the operating conditions.
02 · Equipment features
Engineering details that affect daily operation.

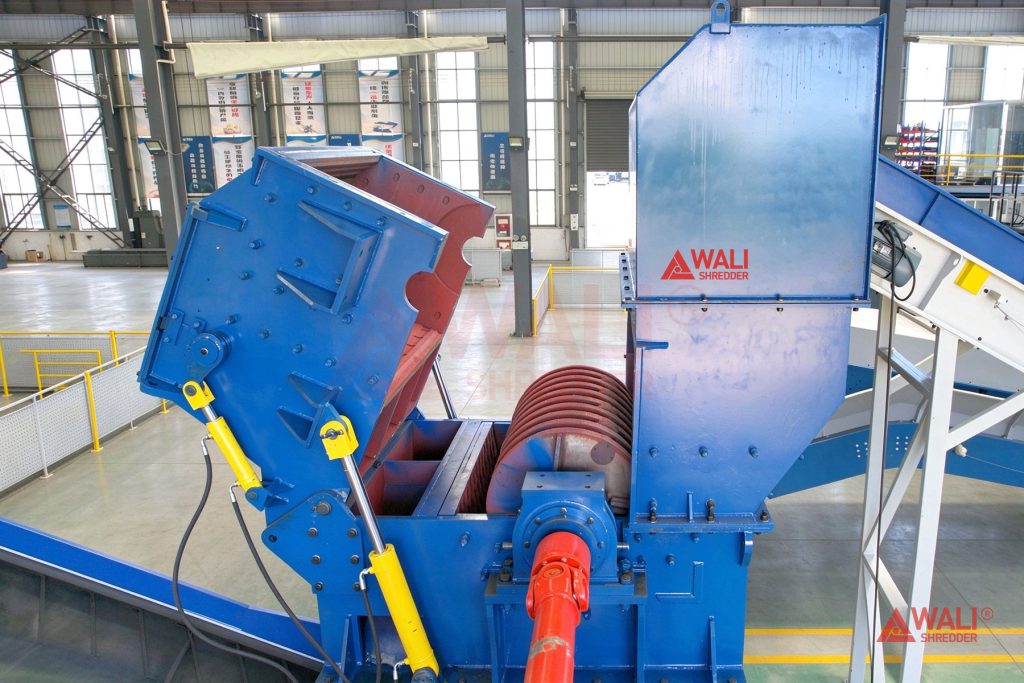

Configurable high-speed rotor
The rotor combines shaft, discs, bearings and application-specific hammers or knives; tooling shape and mass are selected for the target material.
Discuss this configuration →
Replaceable sizing screen
Interchangeable screens control the discharged particle size and are designed for practical removal, cleaning and replacement.
Discuss this configuration →
Protected sealing system
The sealing arrangement protects critical rotating components against dust and contamination during intensive impact crushing.
Discuss this configuration →
Flywheel and impact liner
The flywheel smooths rotor operation while internal impact plates absorb and redirect material energy, reducing shock transmitted to the motor.
Discuss this configuration →
PLC monitoring and control
Trusted electrical components and PLC control support real-time monitoring, abnormal-condition alarms and diagnostic analysis.
Discuss this configuration →03 · Application range
Match the machine to the duty.
- Scrap metal: ferrous scrap, aluminum, mixed metal, copper windings, sheet and beverage cans.
- Electronic waste: radiators, motors, transformers, alternators, cables and small appliances.
- Automotive scrap: crankcases, control units, batteries, selected vehicle components and spark plugs.
- Hard data-bearing products: hard disks and compact electronic storage devices.
- Metal containers: cans and thin-wall metal packaging.
- Appliance components: keyboards, monitors, printers and mixed dismantled fractions.
The WLHM applies high-speed impact and shearing to reduce hard material and liberate valuable fractions. Hammer or knife selection, rotor speed, impact-liner arrangement and screen opening are coordinated with the required particle size and downstream separation process.
Direct engineering contact
Need a quotation or configuration advice?
Send your material, hourly capacity and target output. A WALI engineer will help define a practical starting point.
Talk to an engineer →

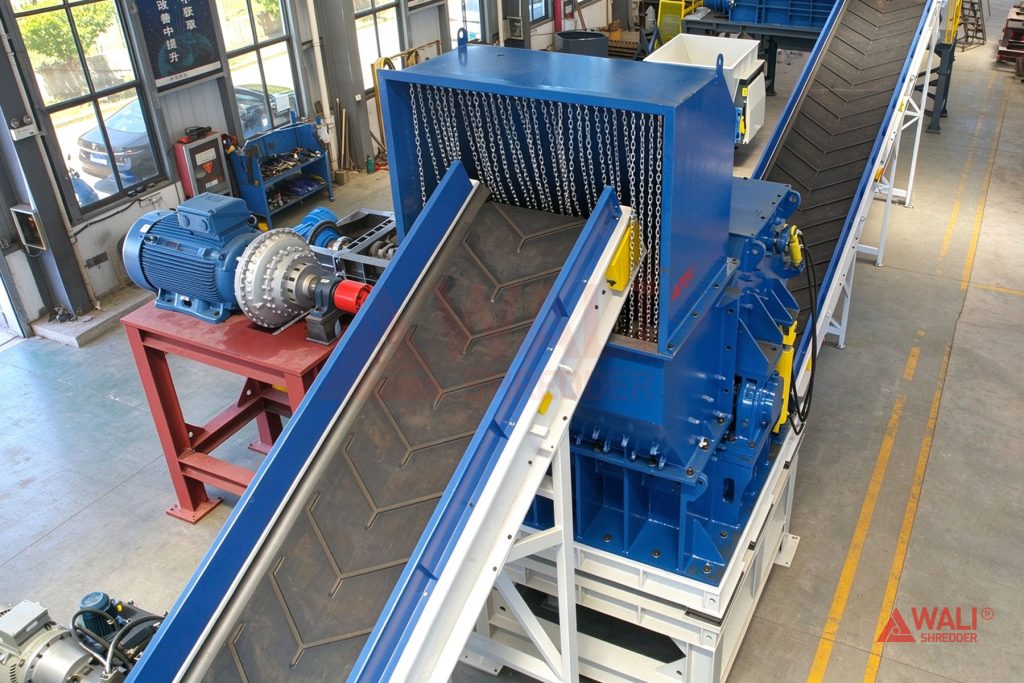

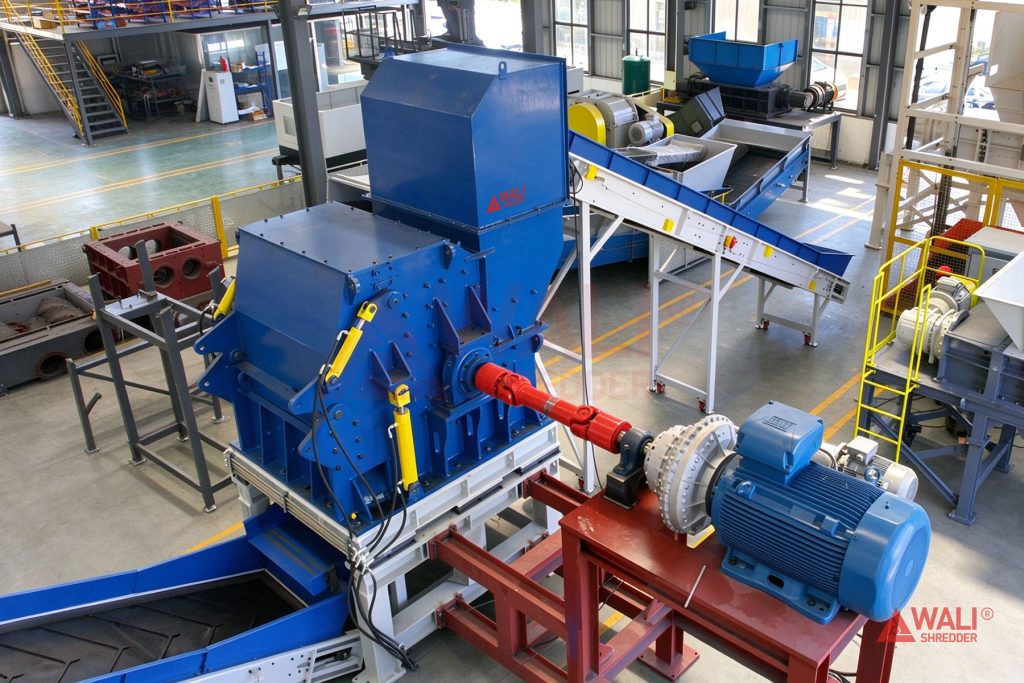

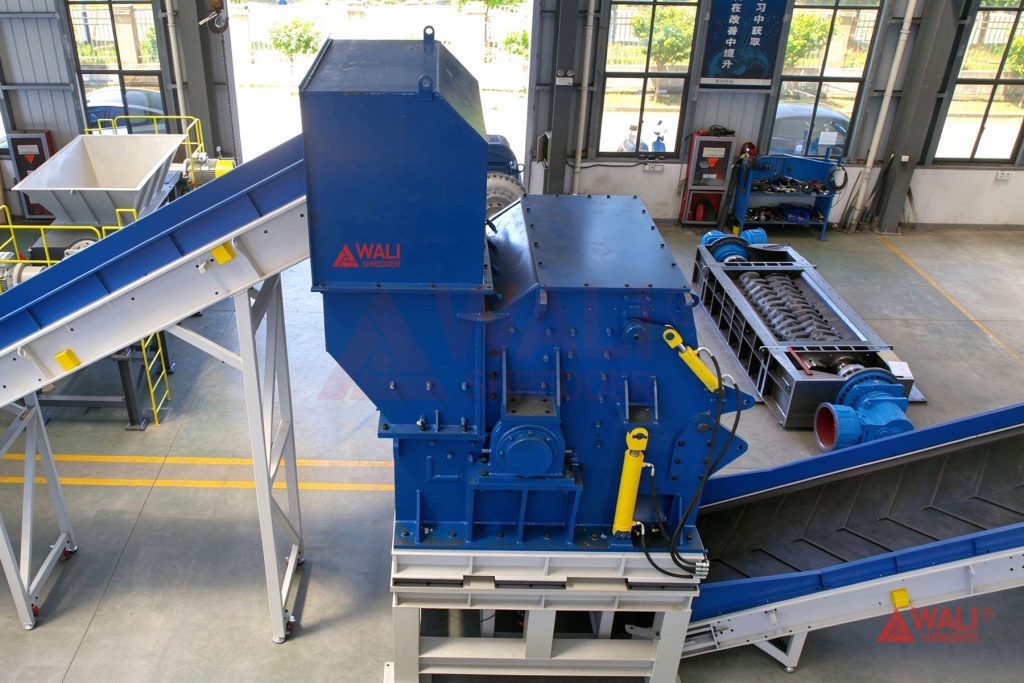

APPLICATION ENGINEERING · WALIMachine in operation
See the machine working with real material.
Watch the feeding, stable processing and resulting output under real operating conditions.
04 · Compare models
WLHM Series model range.
Use this table for preliminary comparison. Final throughput depends on the material, feeding consistency and screen configuration. Power summaries add the listed installed motors; capacity ranges span the listed model values and remain material-dependent.
| Specifications | WLHM-45 | WLHM-60 | WLHM-90 |
|---|---|---|---|
| Drive power | 37/55 kW | 75-90 kW | 90-132 kW |
| Cutting chamber | 20-100 mm | 20-100 mm | 20-100 mm |
| Typical throughput | 0.3-0.5 t/h | 0.5-1 t/h | 1-2 t/h |
| Typical output | 10–100 mm | 10–100 mm | 10–100 mm |
Technical documents
View product information.
Open a brochure online before deciding whether to download it. Contact our team for a project-specific configuration.
PDFProduct brochure
Successful applications
View all projects ↗Projects using WALI equipment.
CompletedJiangsu China
Bulky Waste Recycling Solution- Jiangsu-Suqian
One-Stop Crushing & Separation Solution
View project ↗
CompletedNanjing China
Bulky Waste Recycling Solution-Nanjing-Qilin
One-Stop Crushing & Separation Solution
View project ↗
CompletedNanjing China
Bulky Waste Recycling Solution-Nanjing-Gaochun
One-Stop Crushing & Separation Solution
View project ↗Frequently asked questions
Before you choose a machine.
Clear answers about selection, manufacturing, delivery and support.
Are you a factory or a trading company?
WALI is an industrial recycling equipment manufacturer with its own production and assembly capabilities.
How do you select the right equipment?
Our engineers review the material, required capacity, target output and complete process before recommending a configuration.
Can this equipment be customized?
Yes. Dimensions, drive, controls and line integration can be configured according to the project.
How long is delivery?
Delivery depends on equipment type, customization and the confirmed production schedule.
What after-sales support is available?
Support can include documentation, remote guidance, parts, training and on-site service where agreed.
Get a preliminary configuration
Is this the right series for your material?
Send your capacity, input photos and target output. We will respond with a recommended starting point.
